Mechanical Accessories


Torque Tab-web.jpg

Ezy-tab (ezy-tab)

The Ezy-Tab is designed to counter the torque pressure to the steering system and will reduce or even eliminate steering torque. It mounts on the skeg of the motor below the prop on the gearcase. Easy to Install.  Made of cast aluminum with stainless screws.


Torque Tamer (TT-100)

The Torque Tamer is designed to assist the operator by reducing steering torque feedback, especially with 4-Stroke engines.  The Torque Tamer is designed for Ezy-Glide Steering Systems only. This part will fit most Mercury and Yamaha engines. 5” long from base to bolt.

NOTE: This part is NOT to be used for standard engine steering hookup for motors that may not have an existing idler arm plate and link arm. The plate is longer than a standard idler arm plate on most engines and as a result the link arm is a modified shape and length to accommodate this additional plate length. By extending the plate longer you are increasing leverage to help reduce torque, but as a result will not be able to turn the engine quite as far as before. If you need the standard idler arm plate for remote steering hookup, please contact your local dealer for your brand and type engine.


Quicker Turning Ratio = Faster Response & Shorter Travel Distance

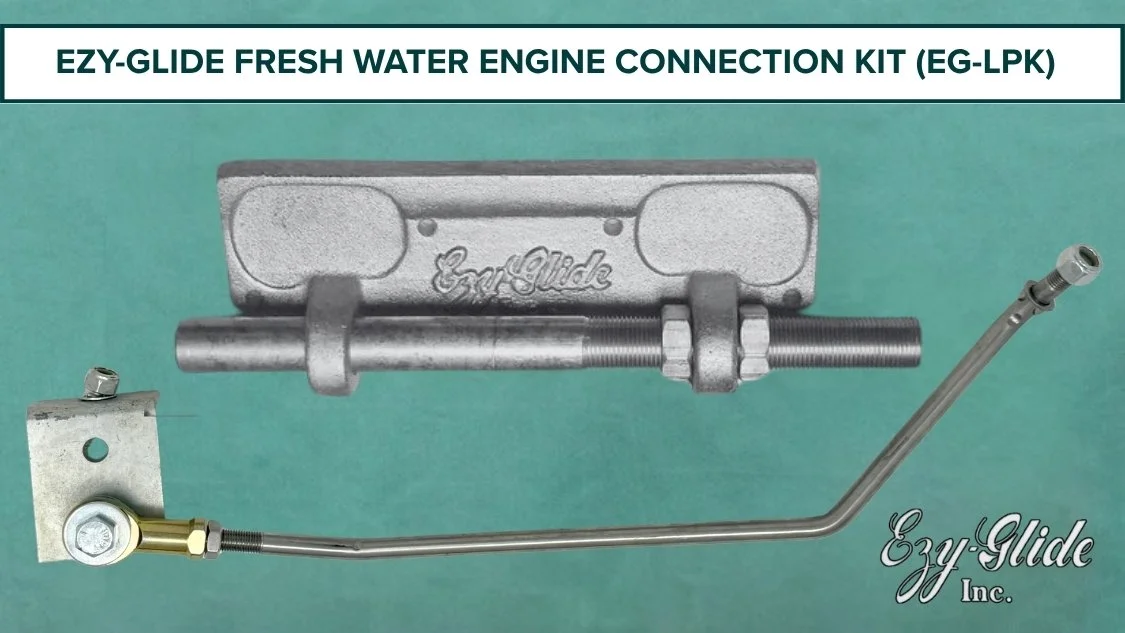

Engine Connection Kit (EG-LPK)

This kit is to supply through tube engine connection. These are primarily for engines that do not have the remote steering tube/tilt tube built onto the engine. This kit supplies the transom plate, threaded tube and link-arm connection to the engine.  These kits are made for cable entry from the port side of the tube but the tube can be reversed for starboard entry for other marine steering types with standard through-tube installation. The included link-arm is designed for a port-side mount only. If the tube is reversed for cable starboard entry, you will need to contact a marine dealer for a standard link arm to fit your application.


Ezy-Shot 2019.jpg

Ezy-Shot Lubricant (EZ-SH)

Now with 80 Below Action Lube! Provides great results for lubricating installed Ezy-Stik systems when the user cannot access the inside of the helm easily. This product is used to ease steering for the operator when steering has become stiff from problems other than defective steering. Comes with a drill template for the Ezy-Stik II 840 system to allow for drilling a small hole through the existing mount surface and housing to the inside of the helm.  After drilling, squeeze approximately 1 oz. of 80 Below Action Lube into the syringe from the top. Replace plunger, and insert syringe into hole of housing and apply 1 oz. into housing. 80 Below Action Lube: 4 oz. tube.

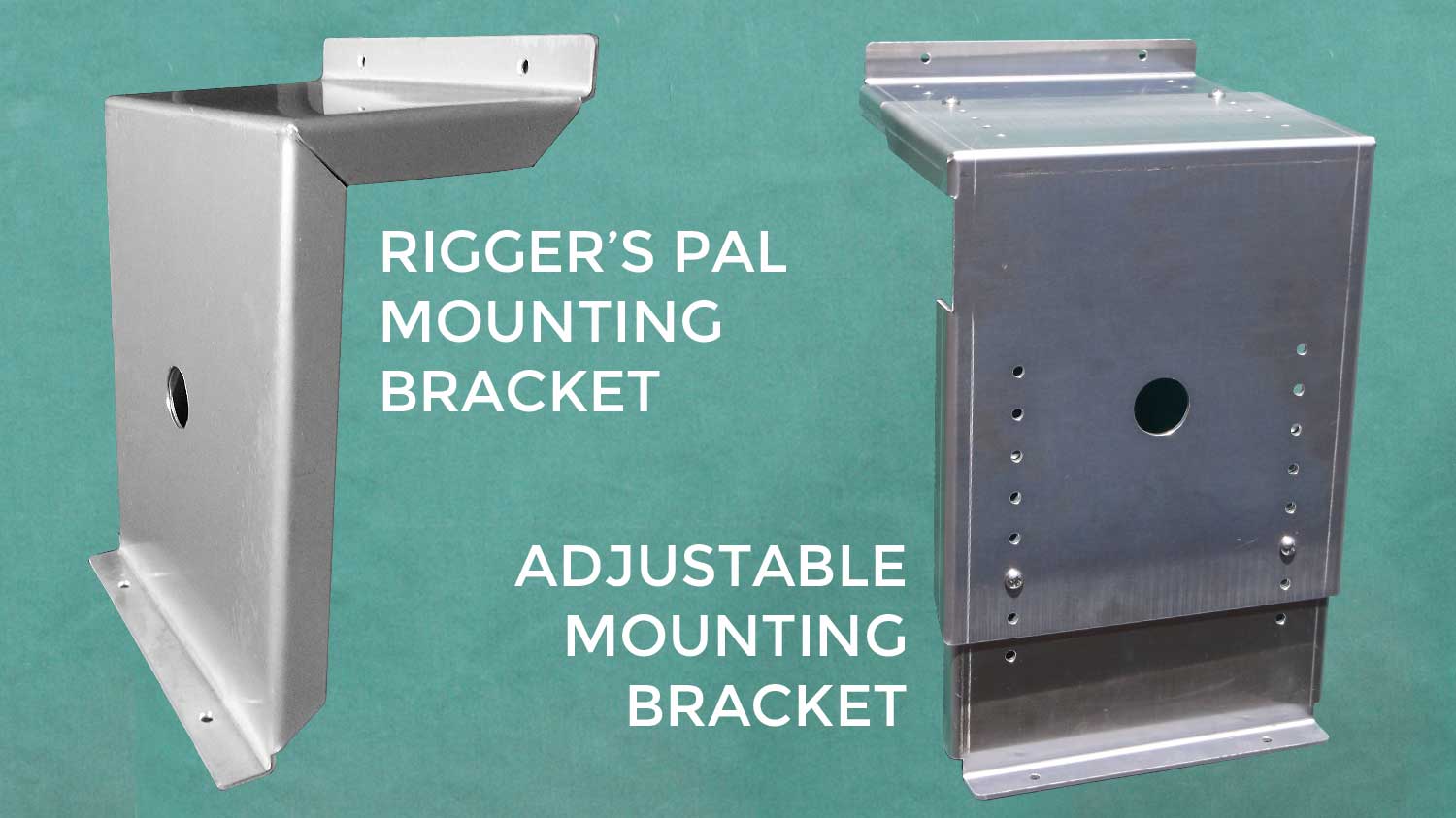

Rigger's Pal Mounting Bracket (RP-12)

This aluminum mount pad is for port mount installation adjacent to the operator’s seat. The Rigger’s Pal Mount Pad with its compact and space-saving design is for mounting the helm of the stick steering system as shown. DIMENSIONS:  12” HIGH, 6” DEEP, 10” WIDE.

Adjustable Mounting Bracket (AB-12)

Adjustable aluminum mount pad for installation adjacent to theoperator’s seat.  The Adjustable Mount Bracket uses the same compact and space-saving design as the Rigger’s Pal for mounting the helm of the stick steering system. Adjusts by 1” positions both in depth and height for greater flexibility of installation and boat design. 7 height positions and 5 depth positions.
DIMENSIONS: 10” WIDE; ADJUSTS FROM 14” TO 18¼” HIGH AND ADJUSTS FROM 8¾” TO 11⅞” DEEP.


Lever Latch (LL-17)

The Lever Latch has two functions. First, the latch can be flipped down over the lever of the Ezy-Stik lever as shown.  This works well to hold the engine in straight-ahead position. Second, this same position will allow trolling in a straight line.
